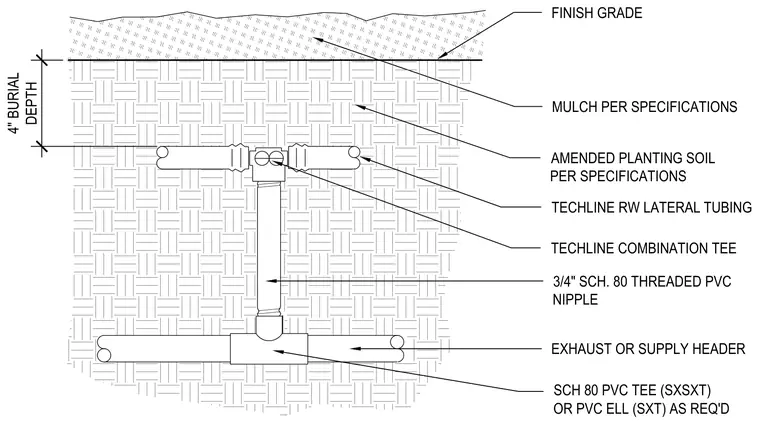

Techline RW lateral tubing connects to an exhaust or supply header via a Techline combination tee. A 3/4-inch Schedule 80 threaded PVC nipple rises from a Schedule 80 PVC tee or elbow, as required, connecting the main header to the lateral tubing assembly at a 4-inch burial depth. The assembly is installed within amended planting soil and finished with a layer of mulch per project specifications.
MULCH PER SPECIFICATIONS FINISH GRADE AMENDED PLANTING SOIL PER SPECIFICATIONS TECHLINE RW LATERAL TUBING TECHLINE COMBINATION TEE 3/4" SCH. 80 THREADED PVC NIPPLE SCH 80 PVC TEE (SXSXT) OR PVC ELL (SXT) AS REQ'D EXHAUST OR SUPPLY HEADER 4" BURIAL DEPTH
