Shrub Planting Detail and Spacing Plan

About this detail

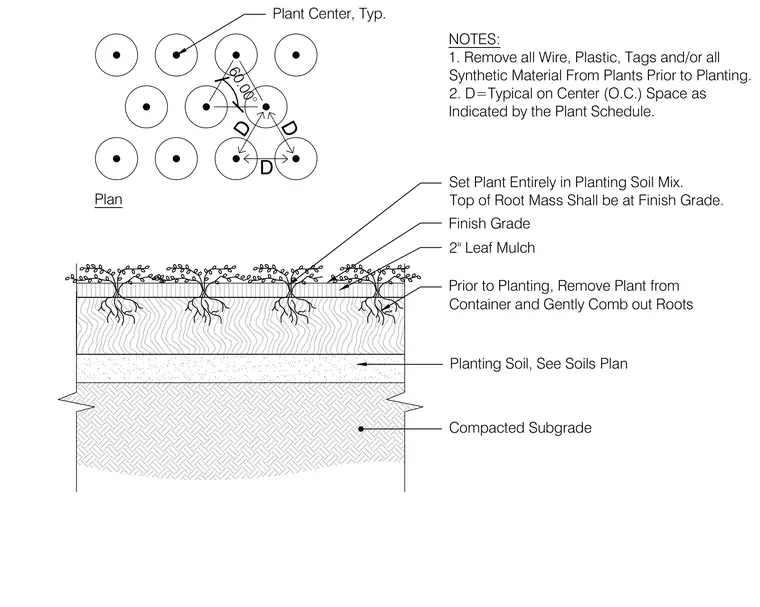

Plants are set entirely within a planting soil mix over compacted subgrade, with the top of the root mass aligned to finish grade. Before installation, plants are removed from containers and roots are gently combed out. The soil surface is finished with two inches of leaf mulch. A companion plan diagram dictates triangular plant spacing at a sixty-degree angle with on-center spacing designated as D per the plant schedule. All wire, plastic, tags, and synthetic materials must be removed from plants prior to planting.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
