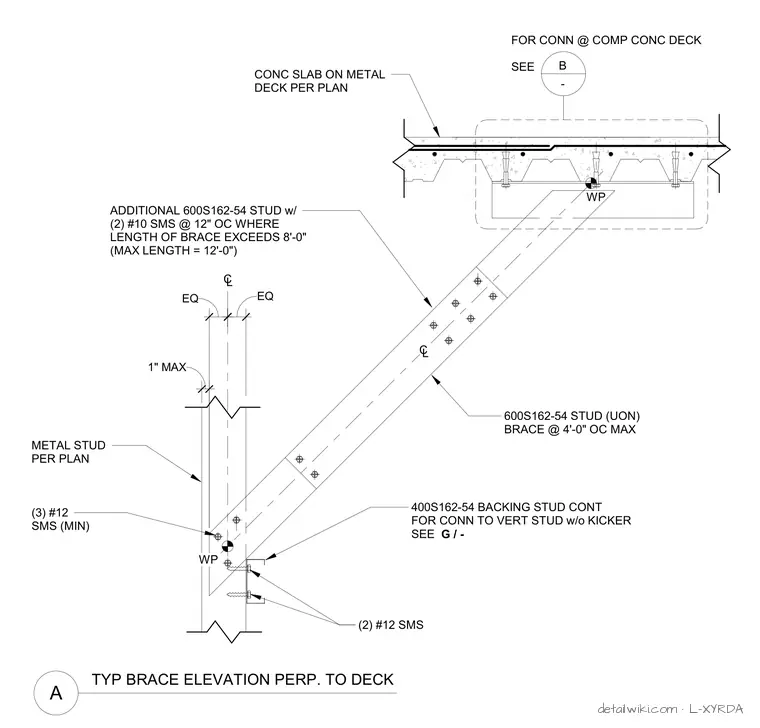

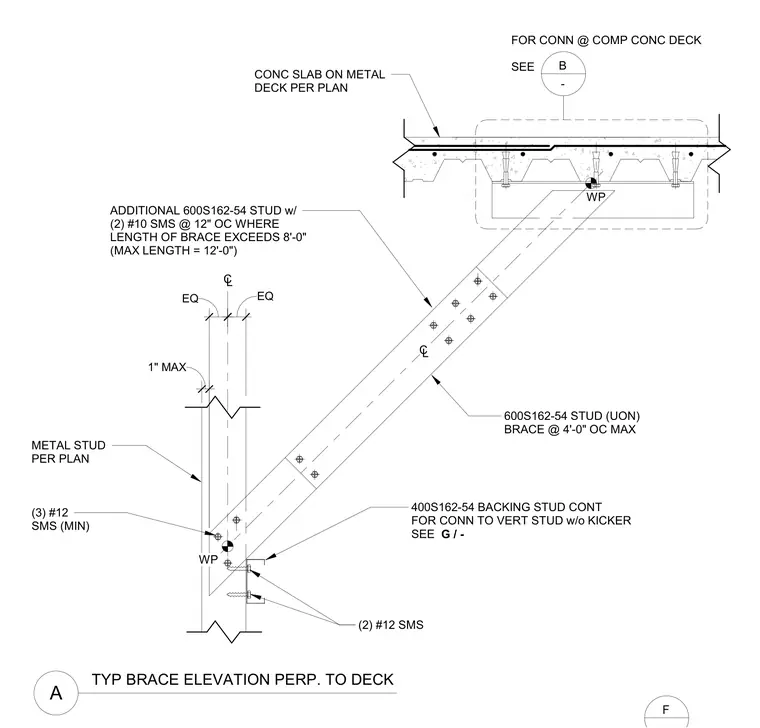

A cold-formed steel stud brace is oriented perpendicular to a concrete slab on metal deck. The 600S162-54 stud brace is spaced at a maximum of 4 feet on center, extending from a metal stud partition up to the overhead deck structure. Where the brace length exceeds 8 feet up to a maximum length of 12 feet, an additional 600S162-54 stud is attached using two number 10 sheet metal screws at 12 inches on center. A continuous 400S162-54 backing stud is provided for connection to the vertical stud without a kicker, secured with two number 12 sheet metal screws. Three number 12 sheet metal screws minimum are specified for the base connection at the vertical metal stud per plan.
TYP BRACE ELEVATION PERP. TO DECK (3) #12 SMS (MIN) 400S162-54 BACKING STUD CONT FOR CONN TO VERT STUD w/o KICKER SEE G / - WP METAL STUD PER PLAN 600S162-54 STUD (UON) BRACE @ 4'-0" OC MAX CONC SLAB ON METAL DECK PER PLAN ADDITIONAL 600S162-54 STUD w/ (2) #10 SMS @ 12" OC WHERE LENGTH OF BRACE EXCEEDS 8'-0" (MAX LENGTH = 12'-0") WP FOR CONN @ COMP CONC DECK SEE (2) #12 SMS 1" MAX EQ EQ A C L C L B - F
