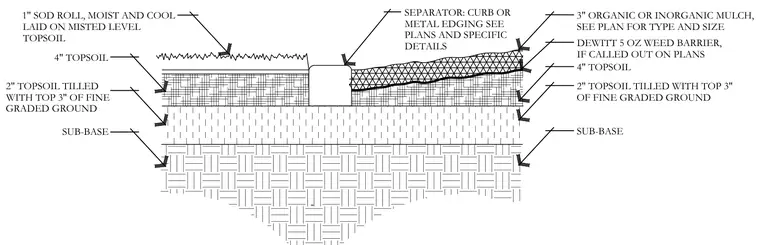

A 1-inch moist and cool sod roll is laid on a misted level topsoil bed over 4 inches of topsoil, which sits on 2 inches of topsoil tilled into the top 3 inches of fine graded ground over a sub-base. A curb or metal edging acts as a separator between the sod and the adjacent planting bed. The planting bed consists of 3 inches of organic or inorganic mulch placed over a weed barrier fabric, resting on 4 inches of topsoil and 2 inches of tilled topsoil over the sub-base.
1" SOD ROLL, MOIST AND COOL LAID ON MISTED LEVEL TOPSOIL 4" TOPSOIL 3" ORGANIC OR INORGANIC MULCH, SEE PLAN FOR TYPE AND SIZE 4" TOPSOIL 2" TOPSOIL TILLED WITH TOP 3" OF FINE GRADED GROUND SUB-BASE SEPARATOR: CURB OR METAL EDGING SEE PLANS AND SPECIFIC DETAILS 2" TOPSOIL TILLED WITH TOP 3" OF FINE GRADED GROUND DEWITT 5 OZ WEED BARRIER, IF CALLED OUT ON PLANS SUB-BASE
