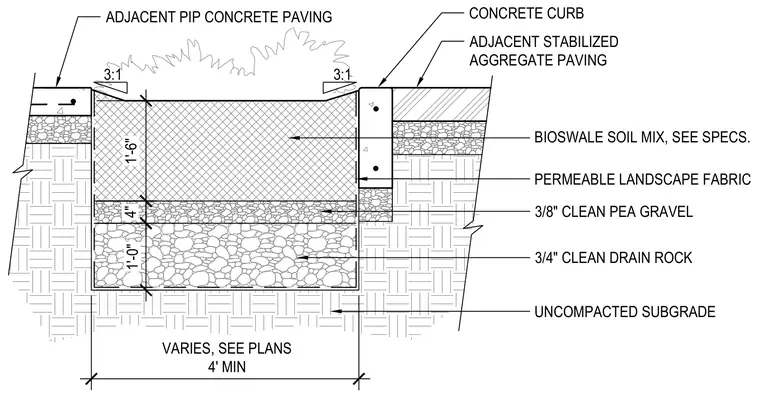

This bioswale section details the subsurface soil and aggregate layers contained by a concrete curb alongside cast-in-place concrete and stabilized aggregate paving. The trench features a one-foot-six-inch bioswale soil mix layer overlying permeable landscape fabric. Beneath the fabric lies a four-inch layer of three-eighths-inch clean pea gravel and a one-foot layer of three-quarters-inch clean drain rock resting on uncompacted subgrade. The side slopes are graded at three to one, and the overall trench width is four feet minimum as sized per plans.
VARIES, SEE PLANS 4' MIN ADJACENT PIP CONCRETE PAVING 3:1 3:1 1'-0" 4" 1'-6" UNCOMPACTED SUBGRADE 3/4" CLEAN DRAIN ROCK 3/8" CLEAN PEA GRAVEL PERMEABLE LANDSCAPE FABRIC BIOSWALE SOIL MIX, SEE SPECS. ADJACENT STABILIZED AGGREGATE PAVING CONCRETE CURB
