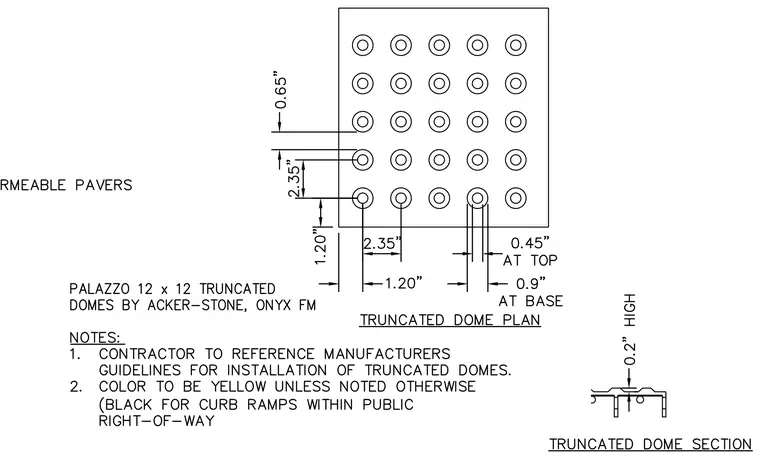

The truncated domes feature a layout with dimensions of zero point six five inches, two point three five inches, one point two inches, zero point four five inches at top, zero point nine inches at base, and zero point two inches high. Palazzo twelve by twelve truncated domes by Acker-Stone in onyx finish are specified adjacent to permeable pavers. Notes require the contractor to follow manufacturer installation guidelines and use yellow color unless otherwise noted, with black specified for curb ramps within the public right-of-way.
