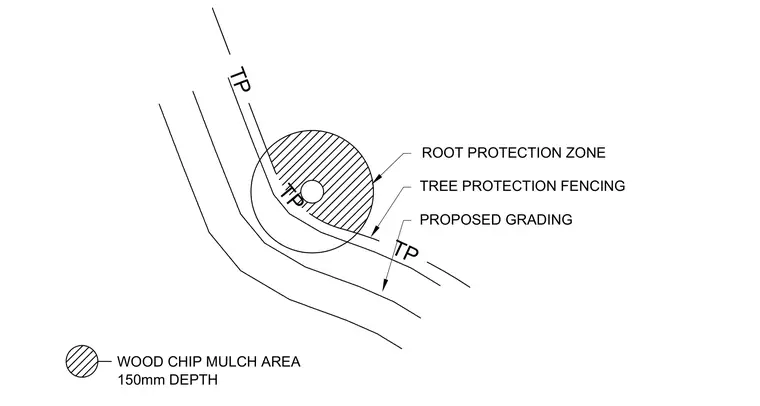

Site grading modifications are implemented around an established tree within a designated root protection zone. A protective fencing boundary surrounds the root zone to prevent construction damage, while proposed grading contours adjust the soil profile outside the critical area. A wood chip mulch layer with a one hundred fifty millimeter depth is applied across the root protection zone to retain soil moisture and prevent compaction.
ROOT PROTECTION ZONE WOOD CHIP MULCH AREA 150mm DEPTH TREE PROTECTION FENCING PROPOSED GRADING TP TP TP
