An air conditioning unit curb is fastened to the framing below with one Simpson H8 connector at each corner and two Simpson LTP4 connectors on each side, rated for an eleven hundred pound maximum unit. Four by eight inch framing is centered below the curb, flanked by typical two by six inch trimmers supported by Simpson B48 or HUSTF48 hangers. A steel joist girder occurs below, with joists and joist girders reinforced per detail fourteen on sheet S six point one where four by eight inch members frame in. The AC unit must connect to the curb below with fasteners equivalent to those specified for the curb to framing connection, and curb sizes must be verified before construction.

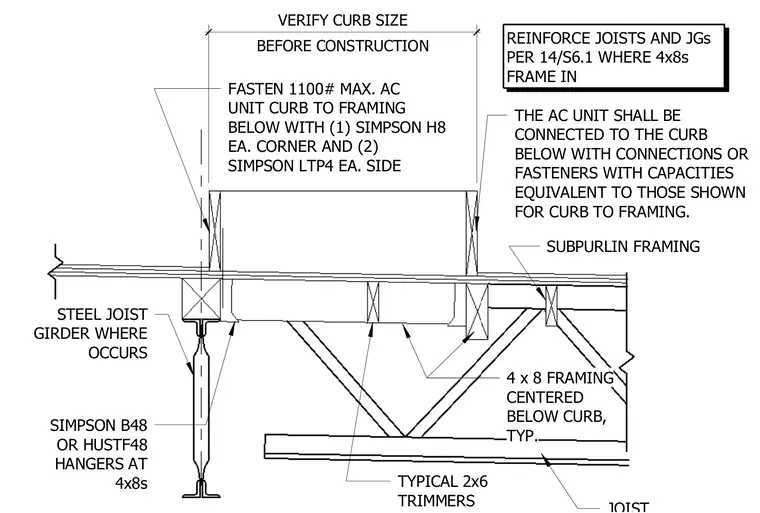

FASTEN 1100# MAX. AC UNIT CURB TO FRAMING BELOW WITH (1) SIMPSON H8 EA. CORNER AND (2) SIMPSON LTP4 EA. SIDE SUBPURLIN FRAMING 4 x 8 FRAMING CENTERED BELOW CURB, TYP. TYPICAL 2x6 TRIMMERS SIMPSON B48 OR HUSTF48 HANGERS AT 4x8s STEEL JOIST GIRDER WHERE OCCURS REINFORCE JOISTS AND JGs PER 14/S6.1 WHERE 4x8s FRAME IN THE AC UNIT SHALL BE CONNECTED TO THE CURB BELOW WITH CONNECTIONS OR FASTENERS WITH CAPACITIES EQUIVALENT TO THOSE SHOWN FOR CURB TO FRAMING. BEFORE CONSTRUCTION VERIFY CURB SIZE
