Chain Link Gate Kickplate

Materials

Steel

Elements

Columns Connections / Plates Reinforcing

Connections

Welded Connection

About this detail

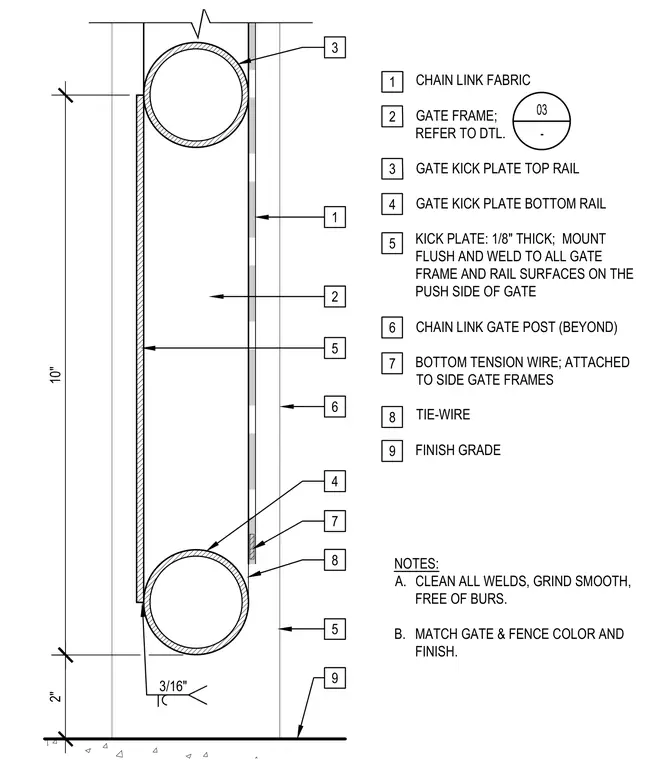

A one-eighth-inch-thick kick plate is mounted flush and welded to all gate frame and rail surfaces on the push side of the gate, spanning between a top rail and a bottom rail. Chain link fabric is secured to the frame with tie-wire, and a bottom tension wire is attached to the side gate frames. The assembly is positioned above the finish grade with a clearance gap, and all welds are cleaned, ground smooth, and free of burrs to match the gate and fence color and finish.
