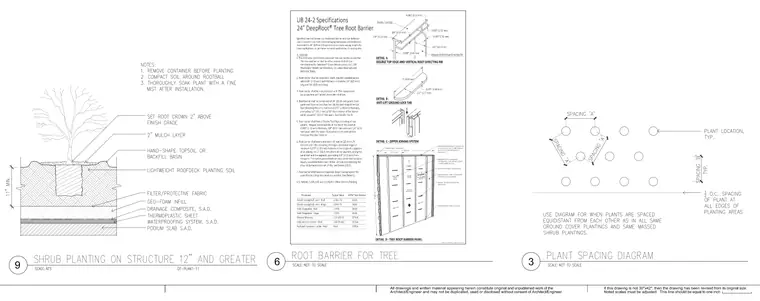

Landscape architectural details for planting installations on structural podiums and root barrier systems. The shrub planting detail specifies soil build-up over a podium slab, including podium slab waterproofing, thermoplastic sheet, drainage composite, geo-foam infill, filter fabric, and lightweight roofdeck planting soil beneath a two-inch mulch layer and shrub. Additional sections detail the DeepRoot tree root barrier specifications with double top edge profiles, anti-lift ground lock tabs, and zipper joining systems. Plant spacing diagrams provide layout guidance for equidistant shrub plantings.
