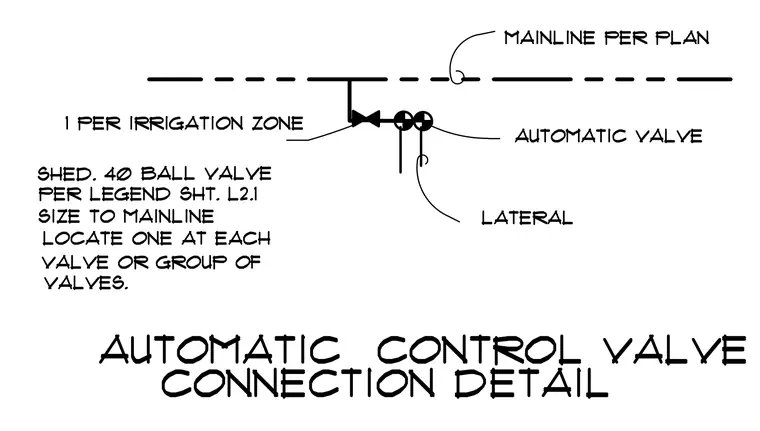

An automatic control valve connects to the mainline per plan, feeding an irrigation lateral line with one valve per irrigation zone. A scheduled 40 ball valve per legend sheet L2.1 is sized to match the mainline and located at each valve or group of valves.
