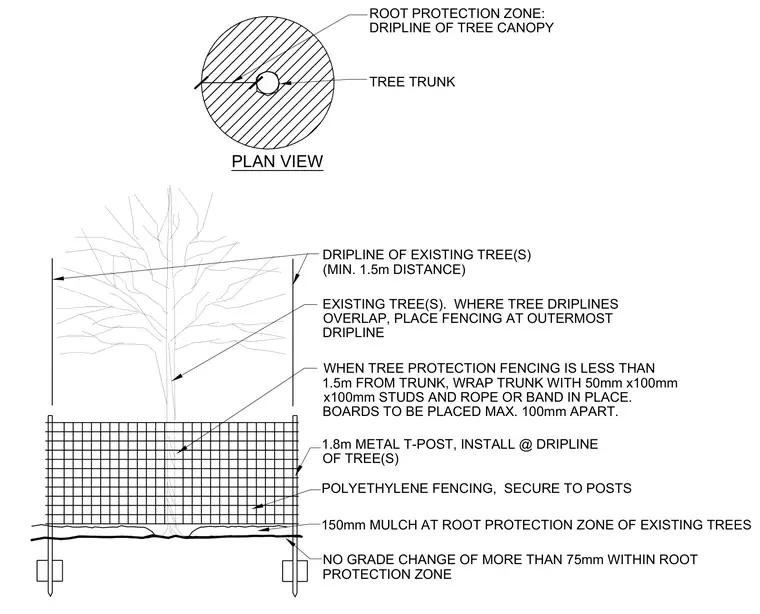

Tree protection fencing is installed at the outermost dripline of existing trees using one point eight meter metal T-posts secured with polyethylene fencing. A layer of one hundred fifty millimeters of mulch is applied at the root protection zone of existing trees while maintaining no grade change of more than seventy-five millimeters within the zone. When tree protection fencing is less than one point five meters from the trunk, the trunk is wrapped with fifty millimeter by one hundred millimeter by one hundred millimeter studs placed a maximum of one hundred millimeters apart and roped or banded in place.
PLAN VIEW DRIPLINE OF EXISTING TREE(S) (MIN. 1.5m DISTANCE) EXISTING TREE(S). WHERE TREE DRIPLINES OVERLAP, PLACE FENCING AT OUTERMOST DRIPLINE 1.8m METAL T-POST, INSTALL @ DRIPLINE OF TREE(S) POLYETHYLENE FENCING, SECURE TO POSTS 150mm MULCH AT ROOT PROTECTION ZONE OF EXISTING TREES ROOT PROTECTION ZONE: DRIPLINE OF TREE CANOPY TREE TRUNK NO GRADE CHANGE OF MORE THAN 75mm WITHIN ROOT PROTECTION ZONE WHEN TREE PROTECTION FENCING IS LESS THAN 1.5m FROM TRUNK, WRAP TRUNK WITH 50mm x100mm x100mm STUDS AND ROPE OR BAND IN PLACE. BOARDS TO BE PLACED MAX. 100mm APART.
