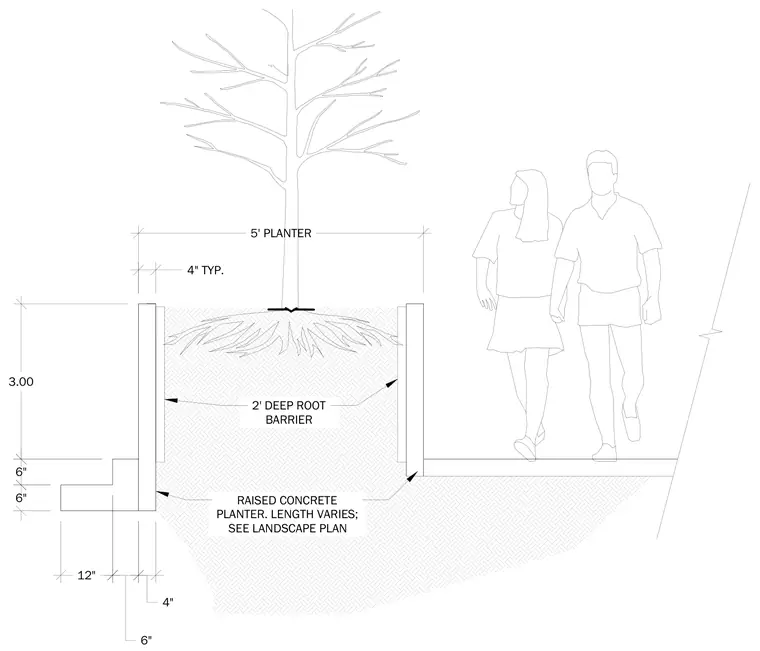

A raised concrete tree planter features a two-foot-deep root barrier and variable length per the landscape plan. The concrete structure sits on a twelve-inch wide footing with a six-inch typical thickness and six-inch vertical steps. The planter width spans five feet with four-inch typical wall thickness.
6" 6" 12" 6" 4" 5' PLANTER 2' DEEP ROOT BARRIER 4" TYP. RAISED CONCRETE PLANTER. LENGTH VARIES; SEE LANDSCAPE PLAN 3.00
