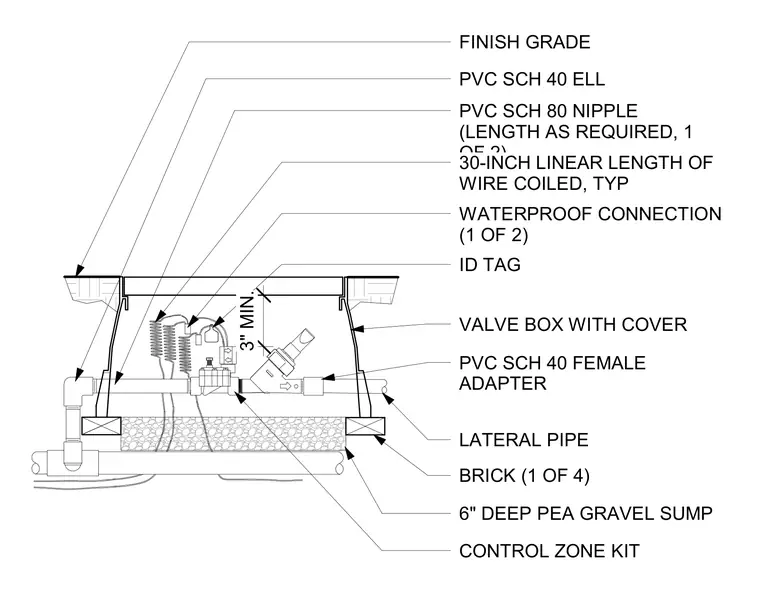

An irrigation control zone kit is housed inside a valve box with a cover, set flush to finish grade over four bricks and a six-inch deep pea gravel sump. Lateral PVC Schedule 40 pipes connect to the assembly using PVC Schedule 40 female adapters, elbows, and Schedule 80 nipples of required length. Waterproof connections and coiled wire lengths with identification tags tie into the control components.
FINISH GRADE PVC SCH 40 ELL VALVE BOX WITH COVER PVC SCH 40 FEMALE ADAPTER LATERAL PIPE BRICK (1 OF 4) 6" DEEP PEA GRAVEL SUMP CONTROL ZONE KIT WATERPROOF CONNECTION (1 OF 2) PVC SCH 80 NIPPLE (LENGTH AS REQUIRED, 1 OF 2) 30-INCH LINEAR LENGTH OF WIRE COILED, TYP ID TAG 3" MIN.
