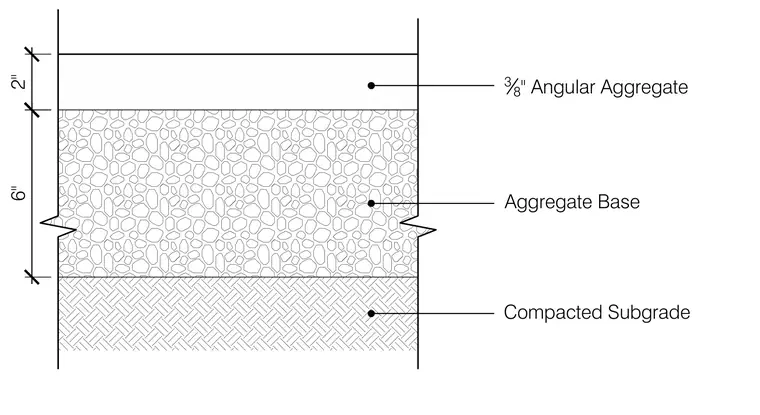

This paving section consists of a two-inch layer of three-eighths-inch angular aggregate surface course placed directly over a six-inch aggregate base. The base layer rests upon a compacted subgrade. Vertical dimensions define the thickness of each individual material layer.
