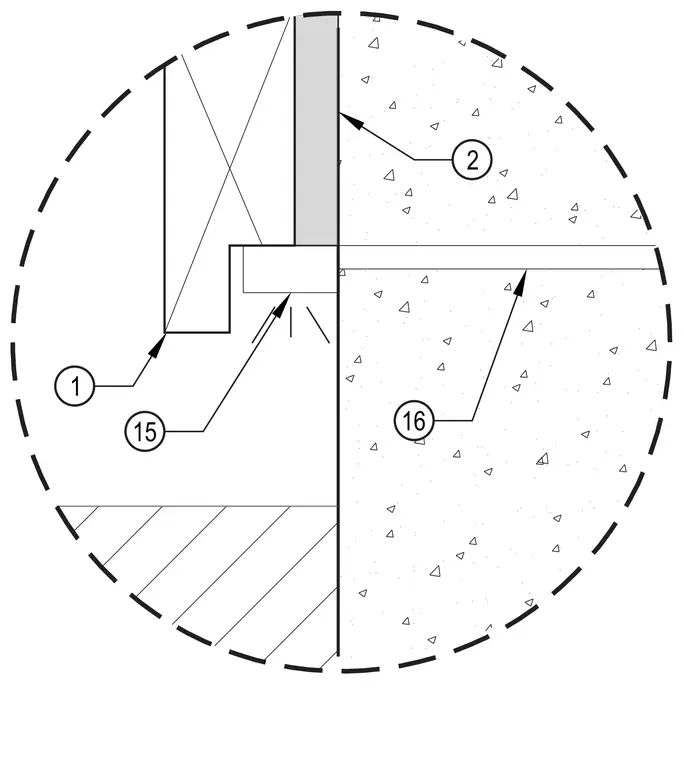

An LED light strip is recessed within a wood cladding assembly adjacent to a concrete substrate. The wood paneling connects to a framed support member. The lighting fixture is integrated into the joint intersection.
