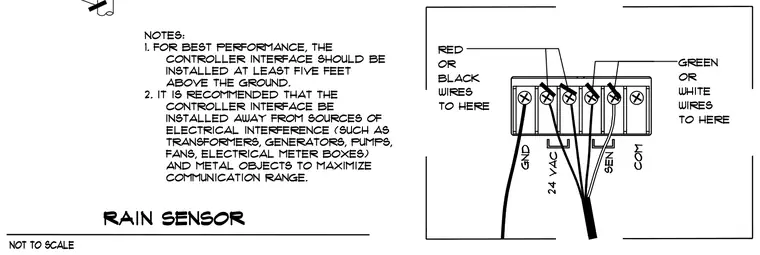

The rain sensor wiring diagram details the terminal block connections for red, black, orange, white, and green wires, alongside ground, 24 VAC, sensor, and common connections. Installation notes specify maintaining a minimum height of five feet above the ground and keeping the controller interface away from electrical interference and metal objects.
