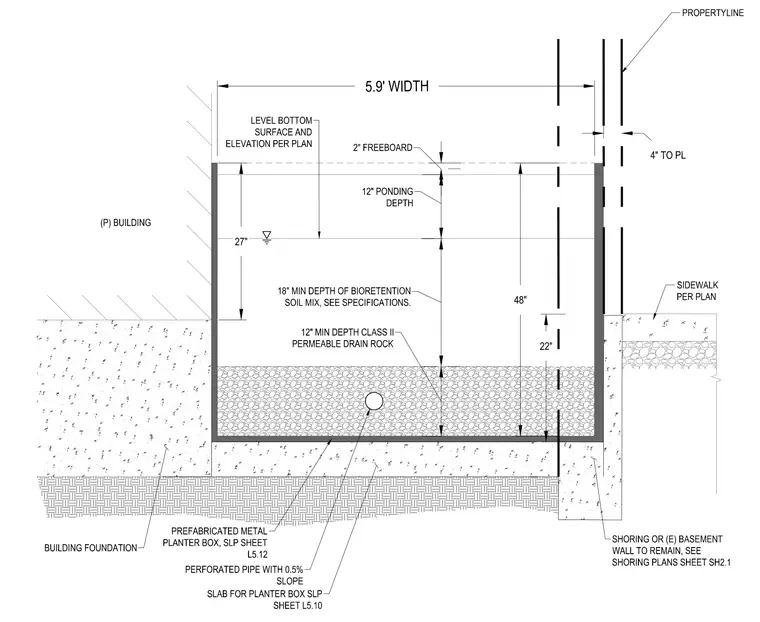

This assembly features a prefabricated metal planter box set upon a concrete slab, positioned between a building foundation and an existing basement wall requiring shoring. The planter contains a twelve-inch layer of Class II permeable drain rock at the base, which houses a perforated pipe installed at a 0.5 percent slope for drainage. Above the rock, an eighteen-inch minimum depth of bioretention soil mix is provided, topped by a twelve-inch ponding depth and a two-inch freeboard. The total interior height of the planter is forty-eight inches, with the soil surface level established per plan. The exterior edge of the planter is located four inches from the property line and adjacent to a sidewalk.
Text on the drawing
FOGTITE #25-TA CONCRETE VAULT WRAP ALL PIPES WITH DUCT TAPE AUTOMATIC CONTROLLER. WALL MOUNTEDAND BRACED PER MANUFACTURER'S RECOMMENDATIONS 2" ∅ SCH 40 PVC CONDUIT WITH LONG SWEEP FOR UF DIRECT BURIAL WIRES TO VALVES. CONCRETE MOUNTING PAD, EXTEND 6" BEYOND OUTSIDE DIMENSIONS OF CONTROLLER. 1" METAL CONDUIT WITH LONG SWEEP ELL FOR 110 V POWER SOURCE AS PER ELECTRICAL CODES EV-CAB-COM CABLE IF APPLICABLE. INSTALL IN 1" CONDUIT 8' COPPER GROUND SPARE WIRE BRASS FROM DCVA VALVE BOX W/ LOCKING LID (SEE SPECS) WATERTIGHT SPLICES (SEE SPECS) MASTER VALVE (SEE SCHED.) BRASS SCH80 PVC UNION (TWO PLACES) MAINLINE FIRST ELBOW, JOINT OR FITTING (SCH40 PVC) COMPUTER INTERFACE CABLE (@ WIRE PATH) TO CONTROLLER FLOW SENSOR (SEE SCHED.) EXTENSIONS (AS REQUIRED) 2'-4 13/16"
