An exterior column aligns with a grid intersection and supports an edge beam sized per plan. A structural angle L4x4x1/4 is placed over the beam with a 3 inch maximum dimension clearance. Provide a deck section or 16 gauge pan to form for concrete. A fillet weld size of 1/4 inch is indicated, with steel deck omitted for clarity.

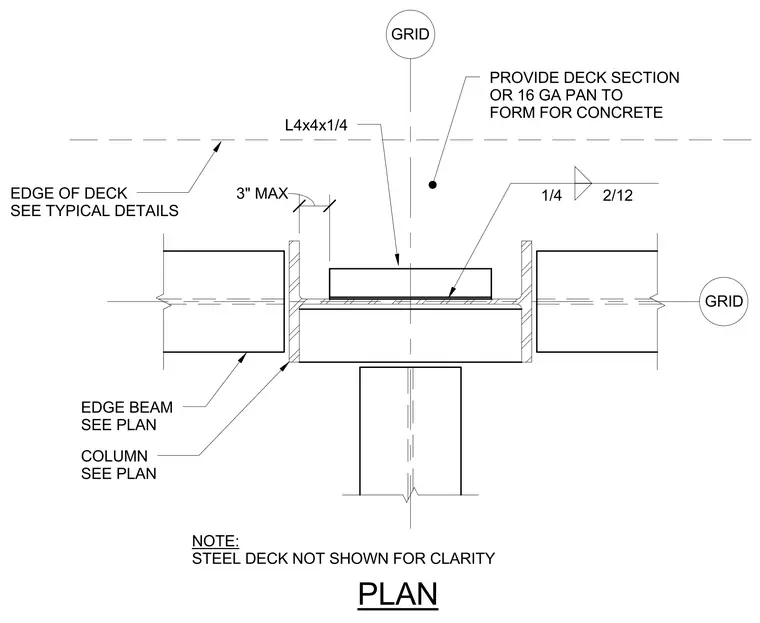

GRID GRID PROVIDE DECK SECTION OR 16 GA PAN TO FORM FOR CONCRETE COLUMN SEE PLAN EDGE BEAM SEE PLAN EDGE OF DECK SEE TYPICAL DETAILS L4x4x1/4 1/4 2/12 3" MAX NOTE: STEEL DECK NOT SHOWN FOR CLARITY PLAN
