Steel joist framing connects to a joist girder or exterior wall with intermediate bridging and early suppression fast response sprinkler heads located according to obstruction requirements. A reference note directs coordination to sheet 9/B4-S6.2 for specific early suppression fast response obstruction requirements.

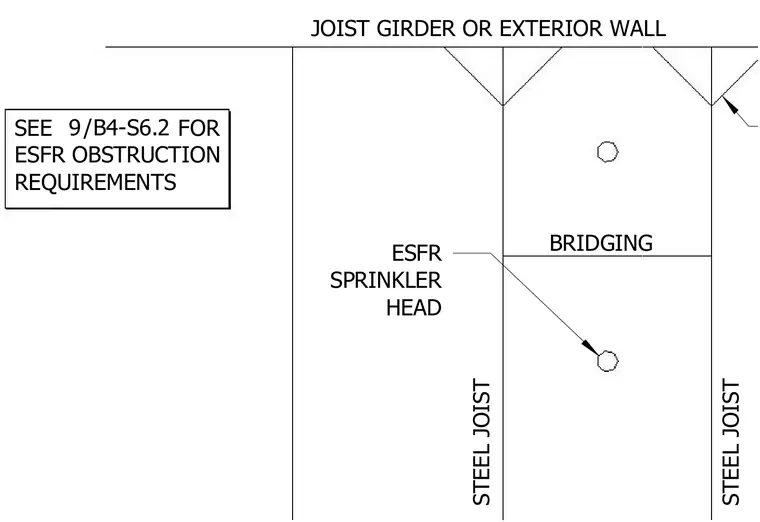

JOIST GIRDER OR EXTERIOR WALL STEEL JOIST STEEL JOIST ESFR SPRINKLER HEAD BRIDGING SEE FOR ESFR OBSTRUCTION REQUIREMENTS / 9 B4-S6.2
