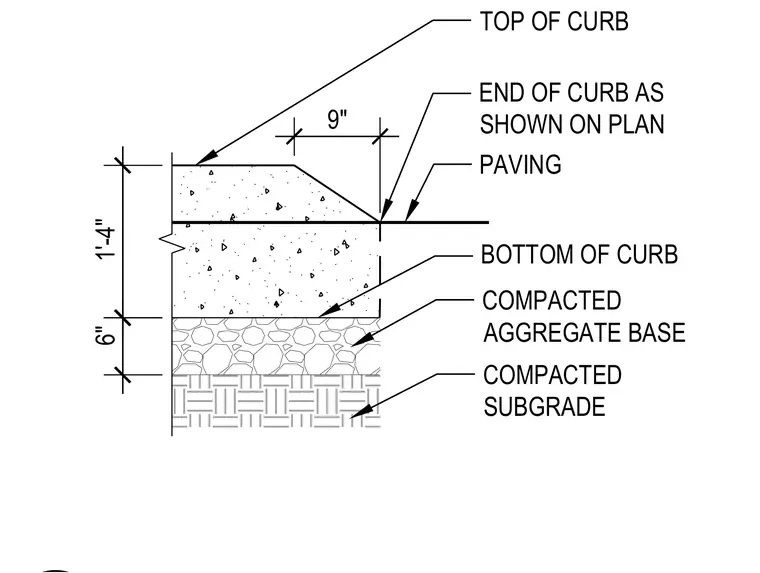

A concrete curb terminates with a sloped end condition adjacent to adjacent paving. The concrete curb stands 1'-4" high with a 9" tapered transition at the end. The curb bears on a 6" compacted aggregate base, which rests in turn on compacted subgrade.
1'-4" 9" 6" TOP OF CURB END OF CURB AS SHOWN ON PLAN PAVING BOTTOM OF CURB COMPACTED AGGREGATE BASE COMPACTED SUBGRADE
