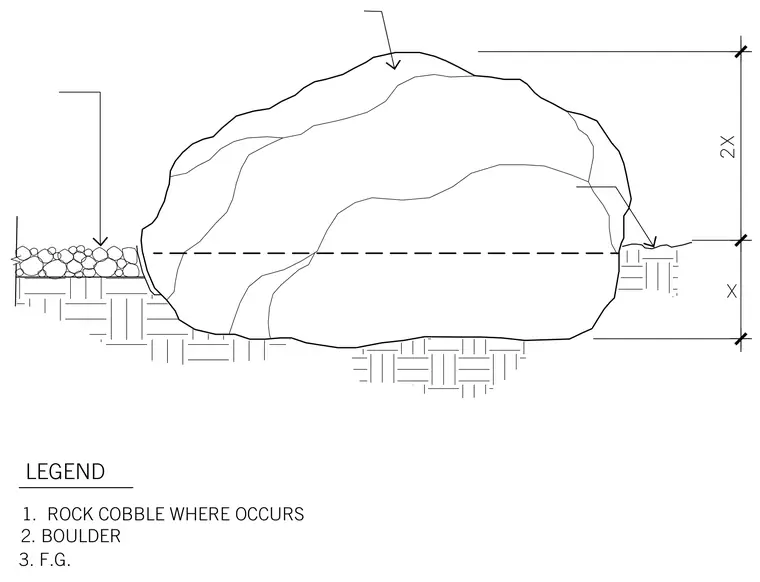

A boulder is positioned partially below finished grade with surrounding rock cobble installed where specified. Dimension lines indicate height proportions above and below the grade line. Subgrade preparation supports the stone base.
1. ROCK COBBLE WHERE OCCURS 2. BOULDER 3. F.G. LEGEND
