Building Maintenance Band and Stone Surfacing Detail

Materials

Elements

About this detail

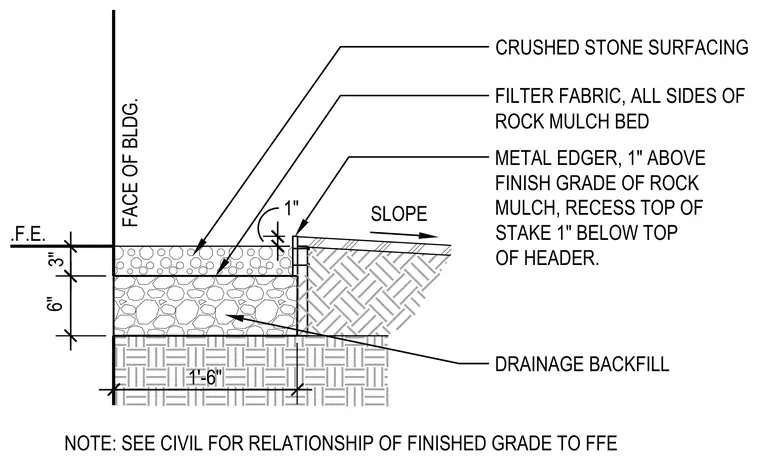

A crushed stone surfacing layer sits over a drainage backfill bed next to the face of the building, with a filter fabric wrapping all sides of the rock mulch bed. A metal edger projects one inch above the finish grade of the rock mulch, with the top of its stake recessed one inch below the top of the header. The rock mulch bed transitions to a sloped subgrade, and finished floor elevation relationships are coordinated per civil drawings.
