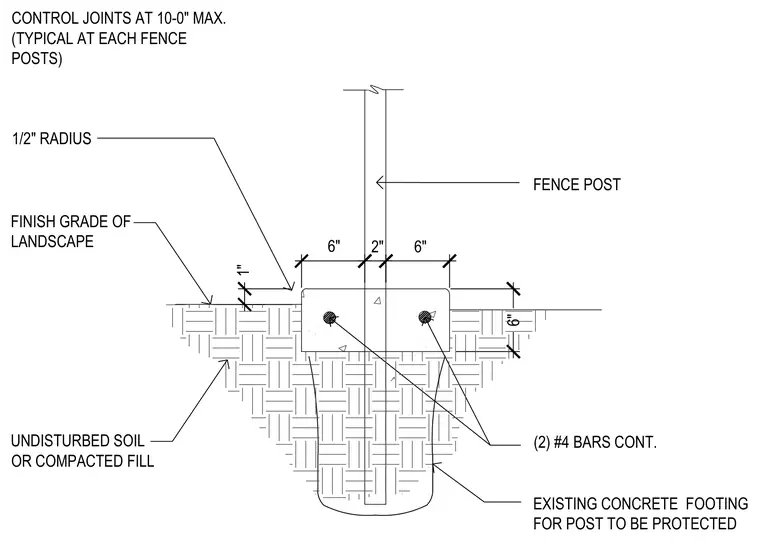

A concrete mow strip sits flush with the finish grade of the landscape around a vertical fence post. The concrete section measures fourteen inches wide by six inches deep, reinforced longitudinally with two continuous number four rebars. Control joints are spaced at a maximum of ten feet on center and typically located at each fence post with a half-inch radius edge. The mow strip bears on undisturbed soil or compacted fill while protecting the existing concrete footing below.
1/2" RADIUS FINISH GRADE OF LANDSCAPE CONTROL JOINTS AT 10-0" MAX. (TYPICAL AT EACH FENCE POSTS) FENCE POST (2) #4 BARS CONT. EXISTING CONCRETE FOOTING FOR POST TO BE PROTECTED 1" 6" 2" 6" 6" UNDISTURBED SOIL OR COMPACTED FILL
