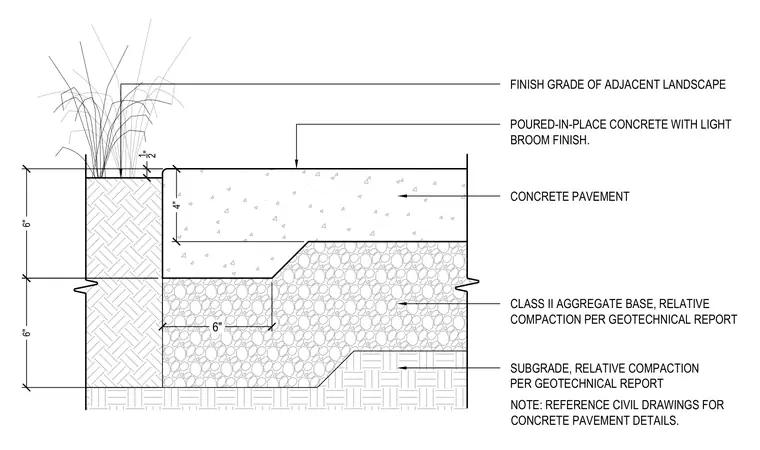

Poured-in-place concrete pavement with a light broom finish rests over a Class II aggregate base and subgrade compacted per the geotechnical report. The pavement edge transitions to adjacent landscaping with a finish grade set half an inch below the top of the concrete curb edge. Civil drawings should be referenced for additional concrete pavement details.
6" 6" 1 2 " POURED-IN-PLACE CONCRETE WITH LIGHT BROOM FINISH. CLASS II AGGREGATE BASE, RELATIVE COMPACTION PER GEOTECHNICAL REPORT CONCRETE PAVEMENT SUBGRADE, RELATIVE COMPACTION PER GEOTECHNICAL REPORT NOTE: REFERENCE CIVIL DRAWINGS FOR CONCRETE PAVEMENT DETAILS. FINISH GRADE OF ADJACENT LANDSCAPE 4" 6"
