Planting beds utilize a continuous outer row placed at the recommended spacing distance on center with a fractional setback from the bed edge. Internal plantings are arranged on a triangular spacing grid with an designated area for spacing adjustments. Plants are positioned at all corner conditions typical throughout the bed layout.

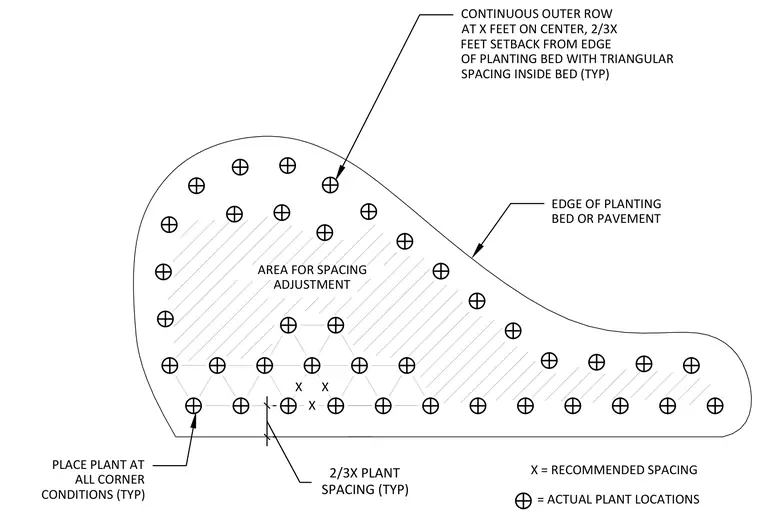

X X X PLACE PLANT AT ALL CORNER CONDITIONS (TYP) 2/3X PLANT SPACING (TYP) X = RECOMMENDED SPACING = ACTUAL PLANT LOCATIONS CONTINUOUS OUTER ROW AT X FEET ON CENTER, 2/3X FEET SETBACK FROM EDGE OF PLANTING BED WITH TRIANGULAR SPACING INSIDE BED (TYP) EDGE OF PLANTING BED OR PAVEMENT AREA FOR SPACING ADJUSTMENT
