Valve Box Installation Detail

Elements

Connections

About this detail

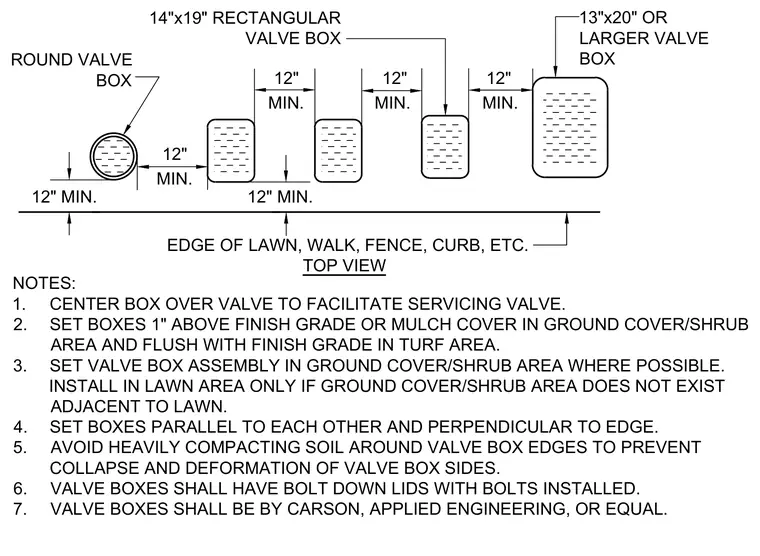

Valve boxes are positioned with a minimum twelve-inch clearance from edges of lawn, walks, fences, or curbs, and centered over valves for servicing access. Multiple boxes are set parallel to each other and perpendicular to the edge with twelve-inch minimum spacing between units. Boxes are set one inch above finish grade or mulch cover in ground cover and shrub areas, and flush with finish grade in turf areas. Bolt-down lids with installed bolts are required on valve boxes manufactured by Carson, Applied Engineering, or equal.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
