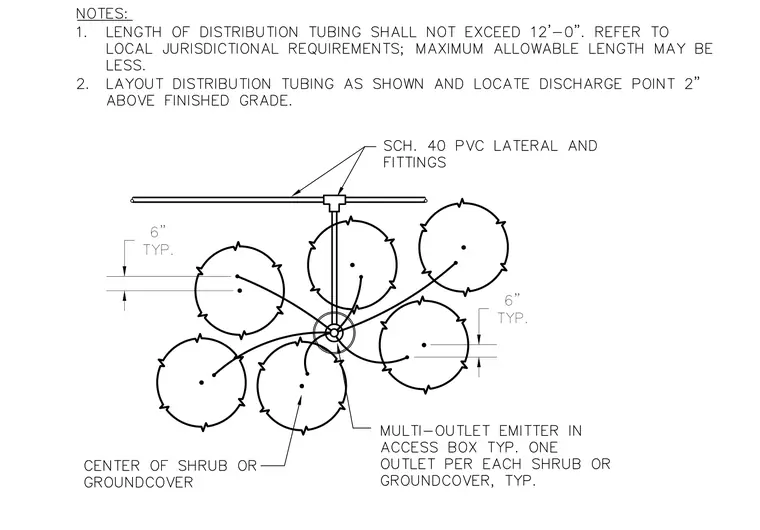

Schedule 40 PVC lateral and fittings feed a multi-outlet emitter housed in an access box with one outlet per each shrub or groundcover typically. The distribution tubing length from the lateral to the emitter shall not exceed twelve feet zero inches with the discharge point located two inches above finished grade. Shrubs and groundcover are spaced at a typical distance of six inches.
