L-WJ6RX — Floor Penetration Detail

Landscape · L-WJ6RX

Floor Penetration Detail

Units: imperial
Sheet: LO-M5.0.2
Discipline: Landscape

Materials

Elements

Floors / Slabs Insulation Roof / Floor Openings Stairs

Text on the drawing

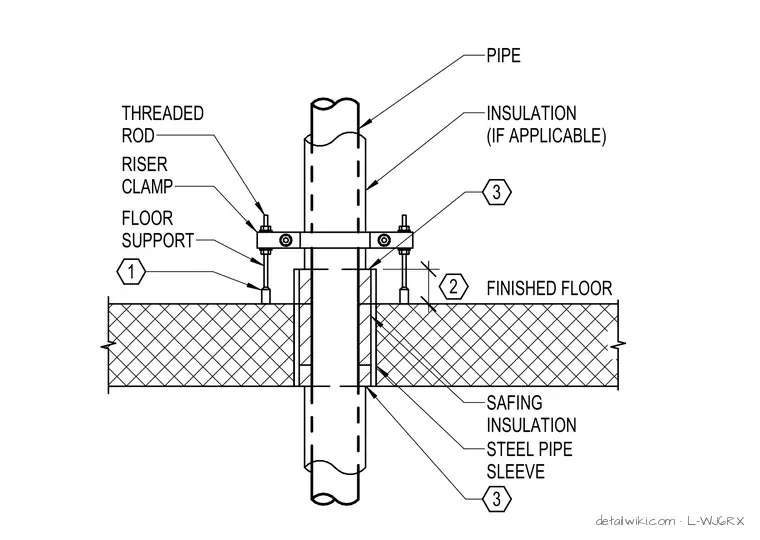

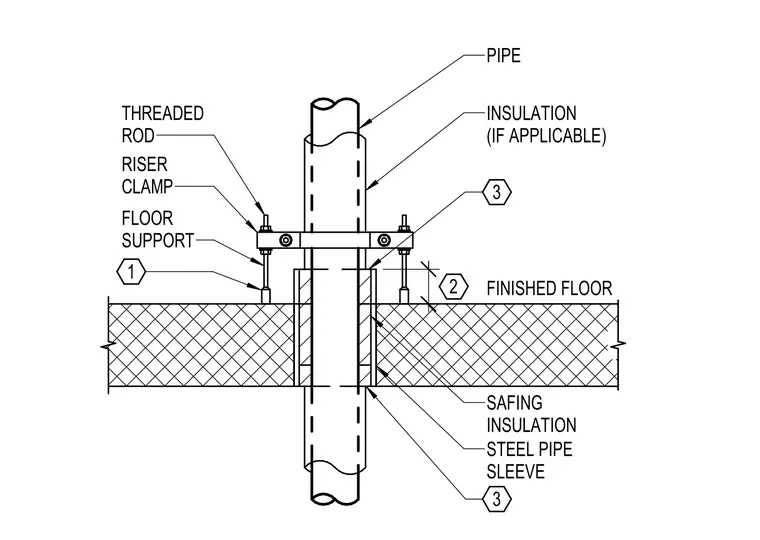

FINISHED FLOOR RISER CLAMP THREADED ROD PIPE INSULATION (IF APPLICABLE) SAFING INSULATION STEEL PIPE SLEEVE 3 2 3 FLOOR SUPPORT 1

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
