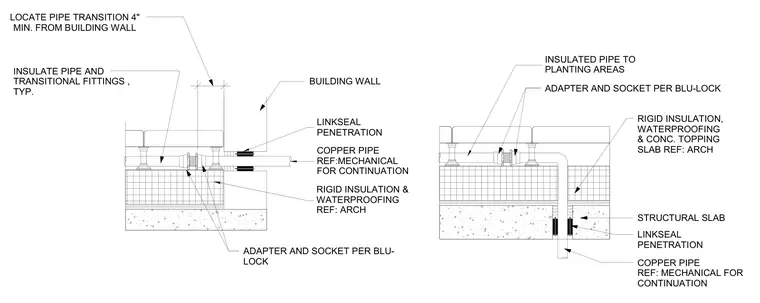

The copper pipe transitions to PVC using a Blu-lock adapter and socket, located a minimum of four inches away from the building wall. A Link-seal module provides a watertight seal at the pipe penetration through the building wall and structural slab. Rigid insulation, waterproofing, and a concrete topping slab cover the assembly. All pipe transitions and transitional fittings are fully insulated.
LOCATE PIPE TRANSITION 4" MIN. FROM BUILDING WALL BUILDING WALL LINKSEAL PENETRATION COPPER PIPE REF:MECHANICAL FOR CONTINUATION ADAPTER AND SOCKET PER BLU- LOCK INSULATE PIPE AND TRANSITIONAL FITTINGS , TYP. STRUCTURAL SLAB LINKSEAL PENETRATION COPPER PIPE REF: MECHANICAL FOR CONTINUATION ADAPTER AND SOCKET PER BLU-LOCK INSULATED PIPE TO PLANTING AREAS RIGID INSULATION & WATERPROOFING REF: ARCH RIGID INSULATION, WATERPROOFING & CONC. TOPPING SLAB REF: ARCH
