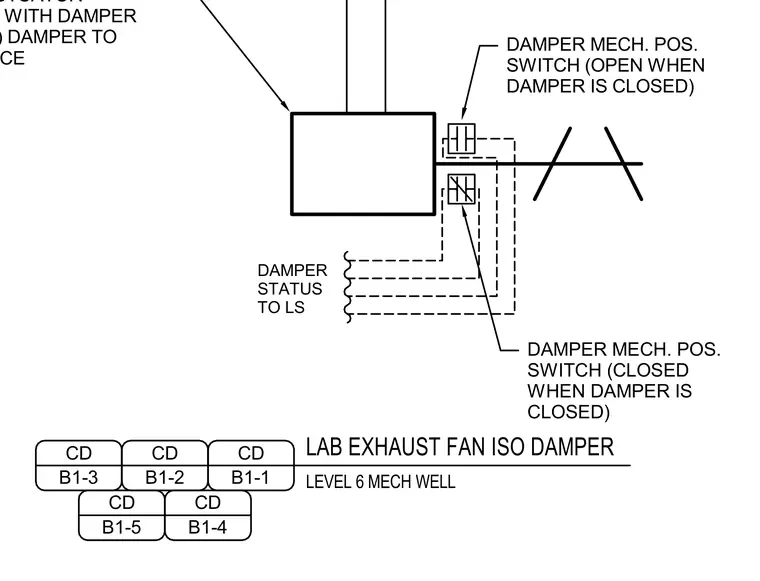

An isolation damper assembly includes a damper actuator provided with the damper unit, configured to fail in place upon loss of signal or power. Two mechanical position switches are installed to monitor the damper state, with one switch opening when the damper is closed and the other closing when the damper is closed. Damper status signals are routed to the life safety system via dedicated wiring connections. The assembly is located at level six in the mechanical well.
DAMPER ACTUATOR (PROVIDED WITH DAMPER ASSEMBLY) DAMPER TO FAIL IN PLACE DAMPER MECH. POS. SWITCH (OPEN WHEN DAMPER IS CLOSED) DAMPER MECH. POS. SWITCH (CLOSED WHEN DAMPER IS CLOSED) CD B1-1 LAB EXHAUST FAN ISO DAMPER LEVEL 6 MECH WELL CD B1-2 CD B1-3 CD B1-4 CD B1-5 DAMPER STATUS TO LS
