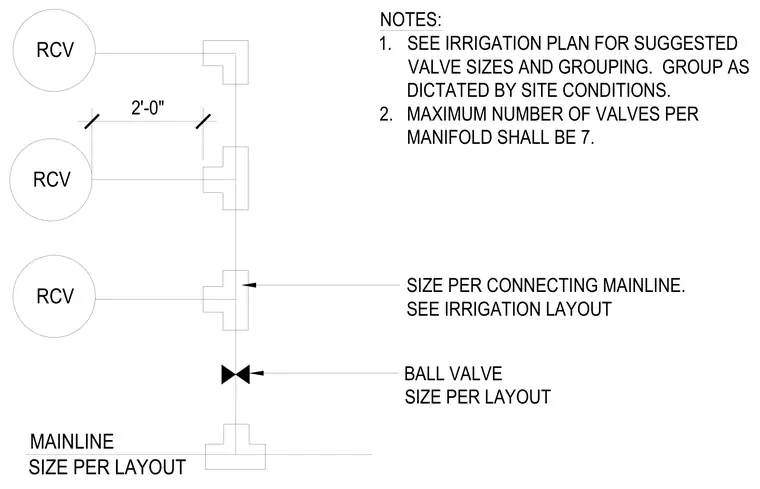

Remote control valves connect to a main irrigation line using elbows, tees, and a ball valve sized according to the site layout. A maximum of seven valves are permitted per manifold, with spacing dimensioned at two feet between connections. Valve sizes and groupings are determined by site conditions and the irrigation plan.
RCV MAINLINE NOTES: 1. SEE IRRIGATION PLAN FOR SUGGESTED VALVE SIZES AND GROUPING. GROUP AS DICTATED BY SITE CONDITIONS. 2. MAXIMUM NUMBER OF VALVES PER MANIFOLD SHALL BE 7. SIZE PER LAYOUT 2'-0" SIZE PER CONNECTING MAINLINE. SEE IRRIGATION LAYOUT BALL VALVE SIZE PER LAYOUT RCV RCV
