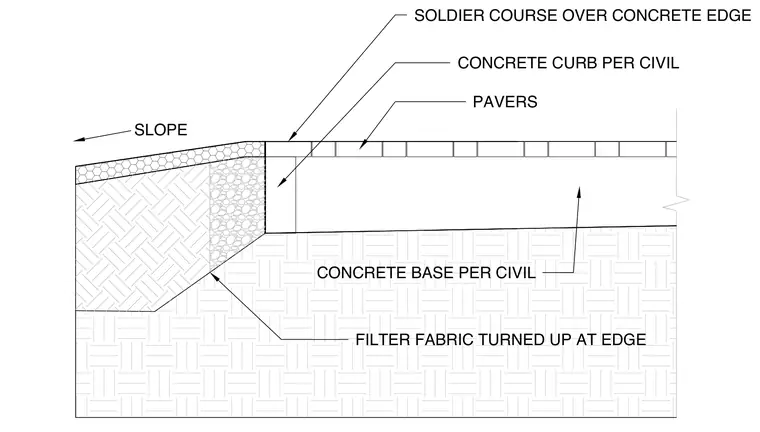

Pavers bear upon a concrete base per civil engineering specifications, terminating at a concrete curb. A soldier course is installed over the concrete edge. Filter fabric is turned up at the edge to retain the base material.
FILTER FABRIC TURNED UP AT EDGE CONCRETE CURB PER CIVIL PAVERS CONCRETE BASE PER CIVIL SOLDIER COURSE OVER CONCRETE EDGE SLOPE
