Plan and Elevation of Prefabricated Aluminum Planter Wall System

Materials

Elements

Walls Stairs Drainage Site / Paving Anchors / Embeds

About this detail

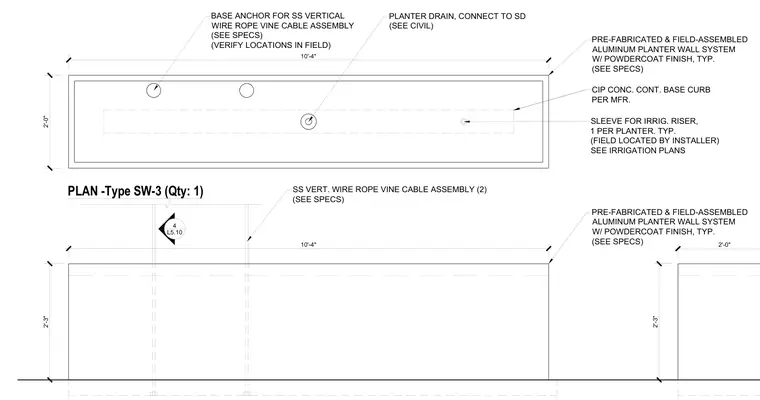

A pre-fabricated and field-assembled aluminum planter wall system with a powder-coat finish, measuring two feet wide by ten feet four inches long and two feet three inches high, sits on a cast-in-place continuous concrete base curb provided per manufacturer specifications. Integrated drainage includes a planter drain connected to storm drain utilities as detailed on civil drawings, along with one sleeve for an irrigation riser located per irrigation plans. A stainless steel vertical wire rope vine cable assembly with base anchors is mounted to the system, with locations verified in the field.
