Landscape · L-WF54Y

Drip Control Zone

Materials

About this detail

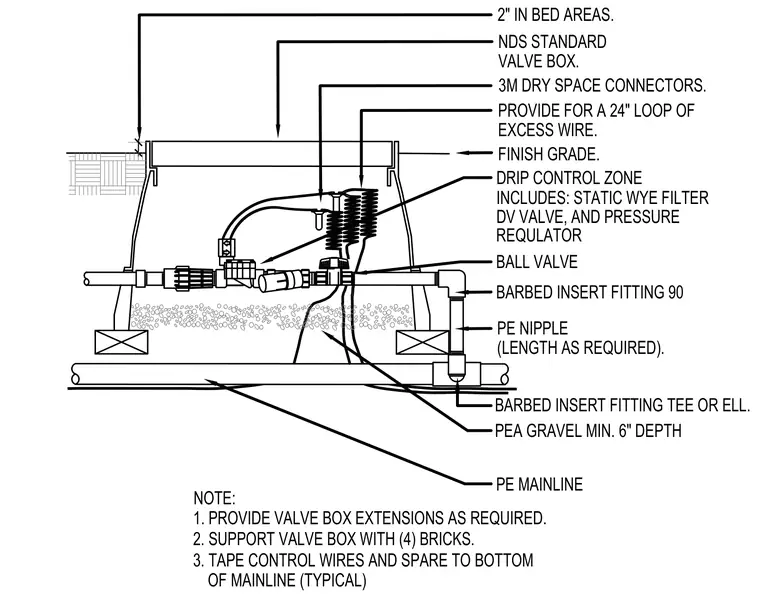

An irrigation drip control zone assembly connects to a polyethylene mainline via a barbed insert fitting tee or ell, a polyethylene nipple, and a pressure ball valve. The control zone incorporates a static wye filter and a DV valve, with 3M dry space connectors and a twenty-four inch loop of excess wire housed inside an NDS standard valve box. The valve box is supported by four bricks and set over a minimum six-inch depth of pea gravel, with control wires and spares taped to the bottom of the mainline. The entire assembly sits at finish grade with a two-inch clearance in bed areas.
