Landscape · L-WE64P

Remote Control Valve and Valve Box Assembly

About this detail

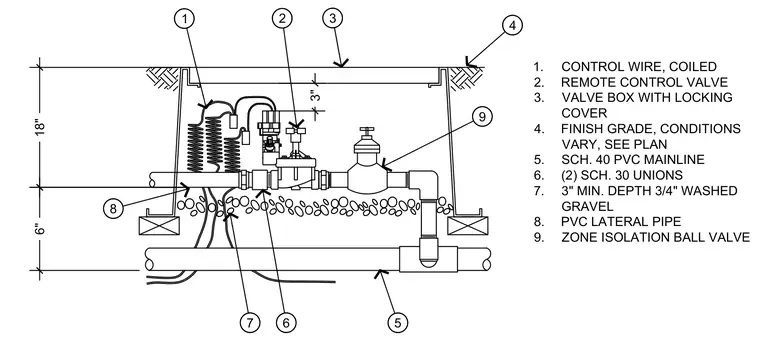

An underground irrigation remote control valve connects to Schedule 40 PVC mainline and PVC lateral pipe within a valve box with a locking cover. The assembly includes a zone isolation ball valve, two Schedule 30 unions, and coiled control wires. The box rests on a three-inch minimum depth of three-quarter-inch washed gravel bed below the finish grade, with conditions varying per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
