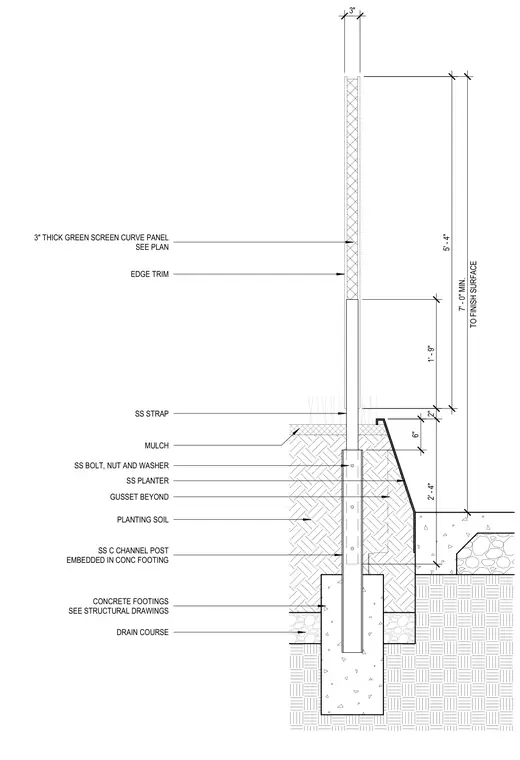

A stainless steel channel post is embedded into a concrete footing and secured with stainless steel bolts, nuts, and washers. The assembly supports a three-inch thick curved green screen panel with edge trim, extending upward through a planting soil and mulch layer. A stainless steel strap reinforces the post connection near the soil line adjacent to the stainless steel planter wall. A drain course sits beneath the concrete footing, which is sized per structural drawings.
5' - 4" 3" SS PLANTER PLANTING SOIL DRAIN COURSE SS C CHANNEL POST EMBEDDED IN CONC FOOTING MULCH EDGE TRIM CONCRETE FOOTINGS SEE STRUCTURAL DRAWINGS 3" THICK GREEN SCREEN CURVE PANEL SEE PLAN SS STRAP SS BOLT, NUT AND WASHER 1' - 9" 2" 2' - 4" 6" GUSSET BEYOND TO FINISH SURFACE 7' - 0" MIN.
