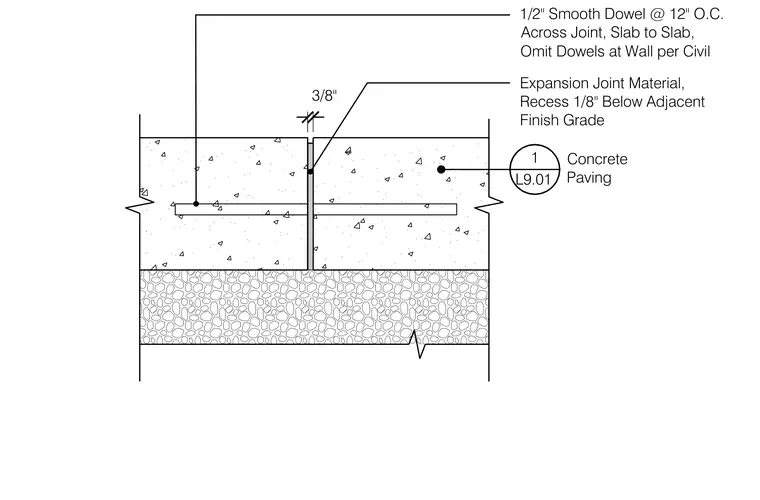

This concrete paving expansion joint detail features adjacent concrete slabs cast over a prepared sub-base aggregate layer. A 3/8-inch expansion joint material is installed vertically between the slab edges and recessed 1/8 inch below the adjacent finish grade. Half-inch smooth dowels are spaced at 12 inches on center across the slab-to-slab joint to provide load transfer while permitting horizontal movement. Dowels are omitted at building walls per civil engineering requirements.
1 L9.01 Concrete Paving Expansion Joint Material, Recess 1/8" Below Adjacent Finish Grade 3/8" 1/2" Smooth Dowel @ 12" O.C. Across Joint, Slab to Slab, Omit Dowels at Wall per Civil
