This assembly consists of a cast brass valve body mounted to a deck using a one and three-sixteenths inch mounting shank with a locknut and washer. Hot and cold water supply is provided via three-eighths inch outer diameter flexible copper tubing inlets connected to the valve body. Dual four-inch forged brass lever handles feature colored plastic index discs for identification. The fixture is equipped with a swing gooseneck spout terminating in a removable aerator and a vacuum breaker.

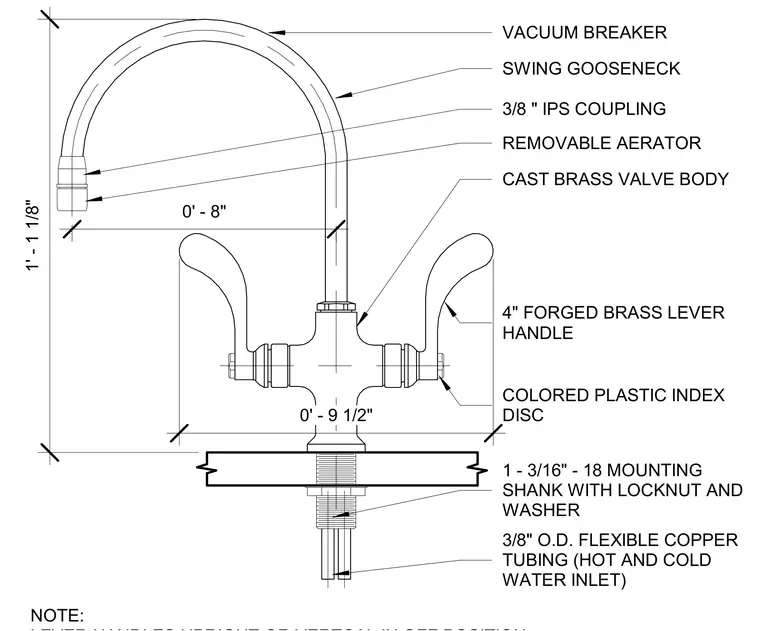

SWING GOOSENECK COLORED PLASTIC INDEX DISC NOTE: 1' - 1 1/8" 3/8 " IPS COUPLING REMOVABLE AERATOR CAST BRASS VALVE BODY 4" FORGED BRASS LEVER HANDLE 3/8" O.D. FLEXIBLE COPPER TUBING (HOT AND COLD WATER INLET) 1 - 3/16" - 18 MOUNTING SHANK WITH LOCKNUT AND WASHER 0' - 8" 0' - 9 1/2" VACUUM BREAKER
