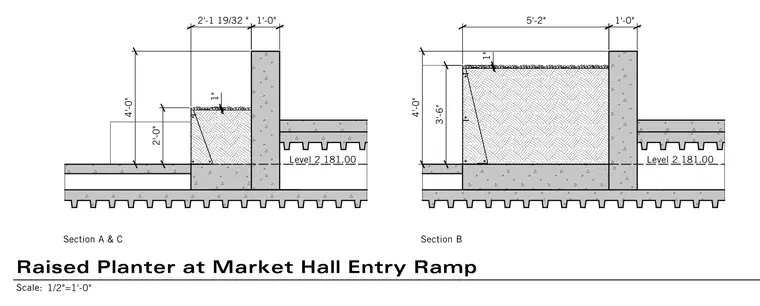

These sections detail raised concrete planters alongside a building entry ramp, featuring soil fill at a depth of three feet six inches in the deeper planter and two feet in the stepped planter, topped with a one-inch layer. The planters abut a vertical concrete wall extending to Level 2 at elevation 181.00, with underlying metal deck and concrete slab assemblies. Dimensions indicate a 4'-0" overall height for both planter configurations, with horizontal widths of 5'-2" for Section B and 2'-1 19/32" for Section A & C. Sloped drainage or batter walls are shown inside the soil fill areas.
