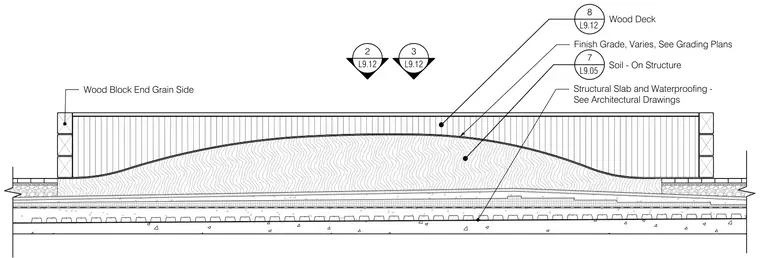

This elevation details a wood block seating back assembly mounted on a structural slab and waterproofing system. The system incorporates a variable finish grade over soil on structure, supporting a wood deck and wood block elements with visible end grain sides. Structural slab and waterproofing requirements coordinate with architectural and grading plans.
2 L9.12 3 L9.12 Structural Slab and Waterproofing - See Architectural Drawings Finish Grade, Varies, See Grading Plans 8 L9.12 Wood Deck Wood Block End Grain Side 7 L9.05 Soil - On Structure
