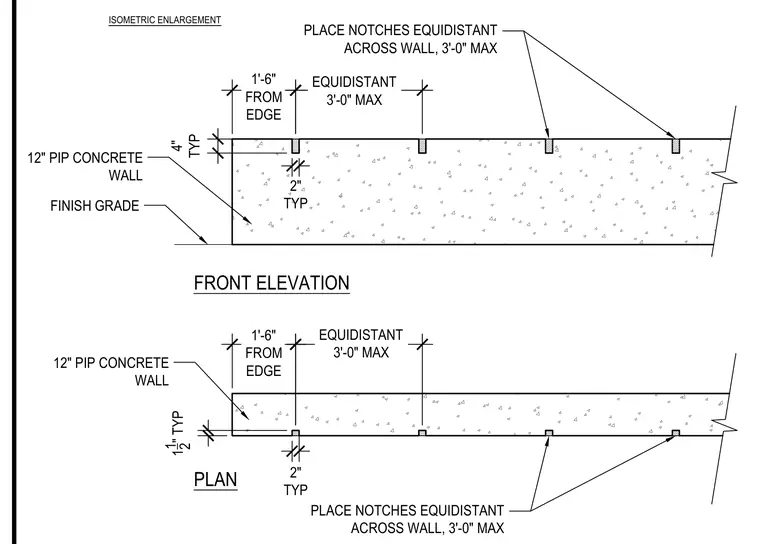

A twelve-inch poured-in-place concrete wall incorporates skate deterrent notches placed equidistant across the wall at a maximum spacing of three feet. The notches are positioned one foot six inches from the edge with typical dimensions of two inches wide by four inches high on the front elevation and one and one-half inches deep on the plan.
1'-6" FROM EDGE EQUIDISTANT 3'-0" MAX 1'-6" FROM EDGE EQUIDISTANT 3'-0" MAX 2" TYP 4" TYP 12" PIP CONCRETE WALL 12" PIP CONCRETE WALL ISOMETRIC ENLARGEMENT FINISH GRADE PLAN FRONT ELEVATION 2" TYP PLACE NOTCHES EQUIDISTANT ACROSS WALL, 3'-0" MAX PLACE NOTCHES EQUIDISTANT ACROSS WALL, 3'-0" MAX 1 1 2 " TYP
