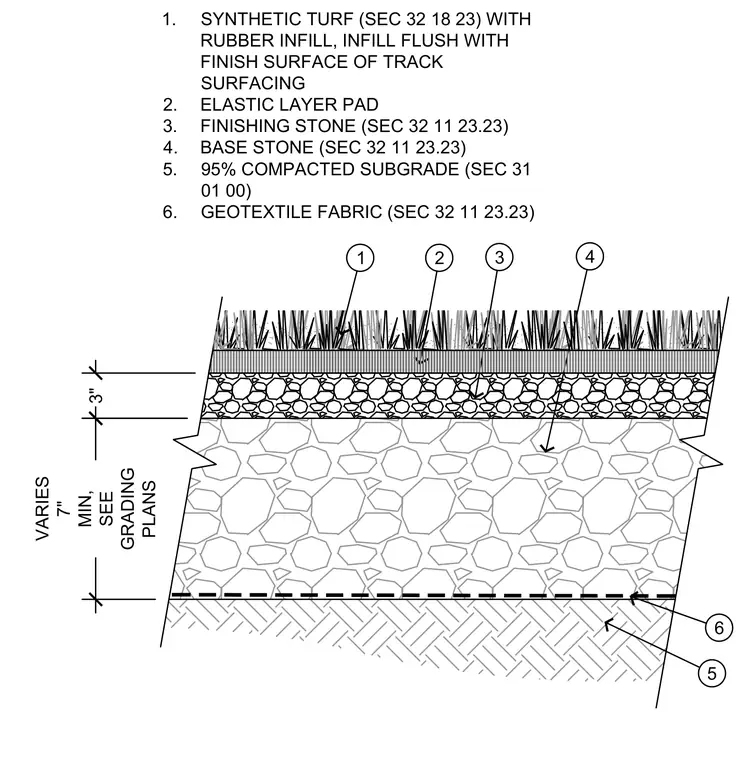

The synthetic turf surface includes rubber infill set flush with the track surfacing, resting directly on an elastic layer pad. Below the pad lies a 3-inch finishing stone layer supported by a base stone layer. A geotextile fabric separates the base stone from the ninety-five percent compacted subgrade below. The subgrade depth varies with a seven-inch minimum thickness per the grading plans.
1. SYNTHETIC TURF (SEC 32 18 23) WITH RUBBER INFILL, INFILL FLUSH WITH FINISH SURFACE OF TRACK SURFACING 2. ELASTIC LAYER PAD 3. FINISHING STONE (SEC 32 11 23.23) 4. BASE STONE (SEC 32 11 23.23) 5. 95% COMPACTED SUBGRADE (SEC 31 01 00) 6. GEOTEXTILE FABRIC (SEC 32 11 23.23) VARIES 7" MIN, SEE GRADING PLANS 3" 1 3 4 5 6 2
