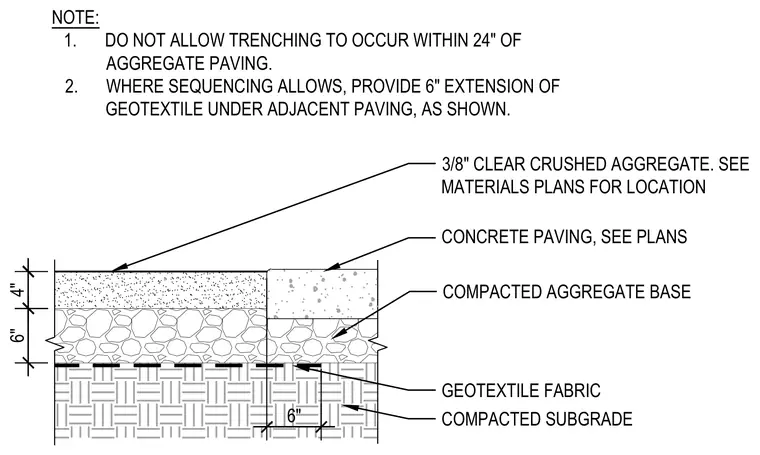

A 3/8-inch clear crushed aggregate surface and concrete paving meet at a utility yard. The surface layers sit over a 6-inch compacted aggregate base, which is underlain by a geotextile fabric and a compacted subgrade. A 6-inch extension of the geotextile fabric is provided under the adjacent paving where sequencing allows. Trenching is restricted within 24 inches of the aggregate paving.
6" 4" NOTE: 1. DO NOT ALLOW TRENCHING TO OCCUR WITHIN 24" OF AGGREGATE PAVING. 2. WHERE SEQUENCING ALLOWS, PROVIDE 6" EXTENSION OF GEOTEXTILE UNDER ADJACENT PAVING, AS SHOWN. 6" 3/8" CLEAR CRUSHED AGGREGATE. SEE MATERIALS PLANS FOR LOCATION CONCRETE PAVING, SEE PLANS COMPACTED AGGREGATE BASE COMPACTED SUBGRADE GEOTEXTILE FABRIC
