L-VZVEQ — 1-Hr/2-Hr Firestopping @ Pipe Penetration Sm

Landscape · L-VZVEQ

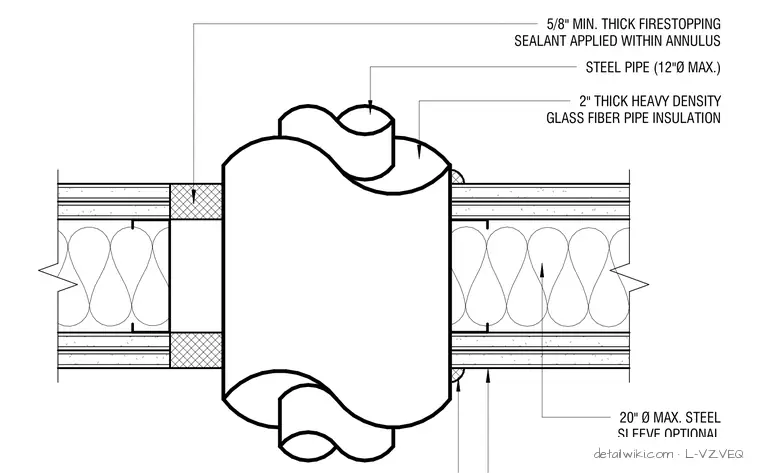

1-Hr/2-Hr Firestopping @ Pipe Penetration Sm

Units: imperial
Sheet: LO-A9.6.2
Discipline: Landscape

Materials

Glass / Glazing Steel

Elements

Floors / Slabs Insulation Partitions Roof / Floor Openings

Text on the drawing

20" Ø MAX. STEEL SLEEVE OPTIONAL 5/8" MIN. THICK FIRESTOPPING SEALANT APPLIED WITHIN ANNULUS STEEL PIPE (12"Ø MAX.) 2" THICK HEAVY DENSITY GLASS FIBER PIPE INSULATION

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
