A 2x6 Ipe cap seats over a 2x6 pressure-treated girt, fastened with stainless steel headed anchor bolts spaced at two feet on center in staggered rows. A matching wood plug conceals the fastener at the top surface. The cap assembly ties into vertical 2x6 pressure-treated intermediate supports using an L-bracket connection, maintaining a typical one-eighth inch joint spacing. Exterior faces are clad with FSC 100% hardwood Cumaru one-inch by 2.8-inch wood slats.

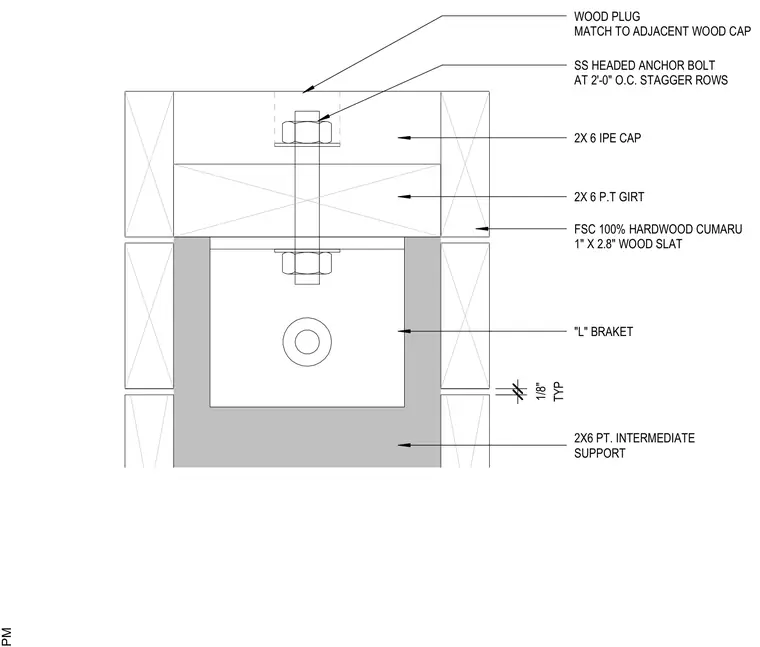

FSC 100% HARDWOOD CUMARU 1" X 2.8" WOOD SLAT 2X 6 P.T GIRT 2X 6 IPE CAP SS HEADED ANCHOR BOLT AT 2'-0" O.C. STAGGER ROWS 2X6 PT. INTERMEDIATE SUPPORT "L" BRAKET WOOD PLUG MATCH TO ADJACENT WOOD CAP TYP 1/8"
