Concrete slab depression transitions are designated as D. For depressions less than four inches, typical slab reinforcement continues through the transition slope with a minimum eight-inch offset and one-foot transition zone. For depressions ranging from four inches to twelve inches, additional reinforcement includes number four continuous bars and number five bars at eighteen inches on center. The sloped transition matches the size and spacing of typical slab reinforcement over a two-foot run with an eight-inch minimum dimension at the lower slab level. Architectural drawings should be consulted for specific edge conditions.

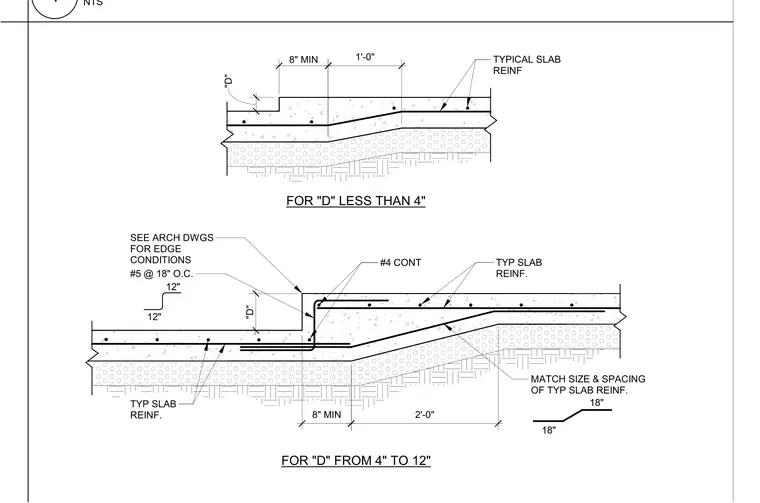

#4 CONT TYPICAL SLAB REINF FOR "D" FROM 4" TO 12" FOR "D" LESS THAN 4" "D" 1'-0" 8" MIN SEE ARCH DWGS FOR EDGE CONDITIONS "D" #5 @ 18" O.C. 2'-0" 8" MIN 12" 12" TYP SLAB REINF. MATCH SIZE & SPACING OF TYP SLAB REINF. 18" 18" TYP SLAB REINF. NTS 1
