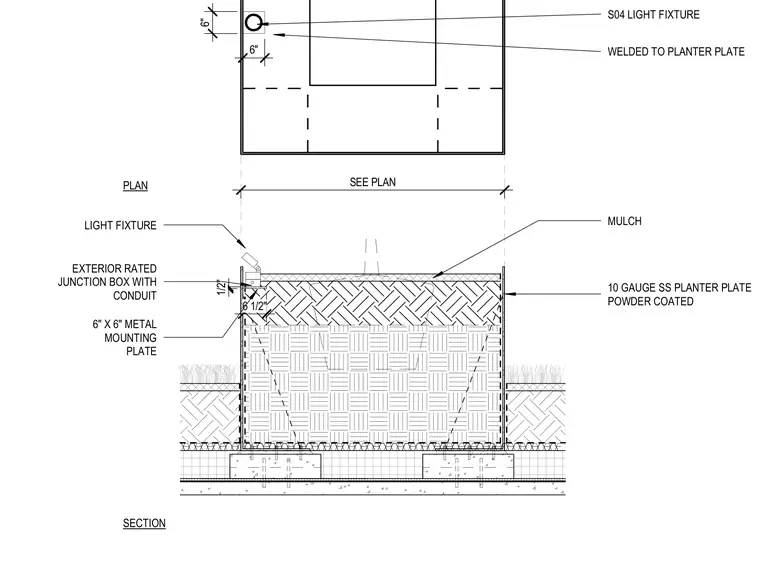

A landscape tree planter assembly features a ten gauge stainless steel powder-coated planter plate containing mulch. An exterior-rated junction box with conduit connects to a light fixture mounted on a six-inch by six-inch metal mounting plate. The mounting plate is welded to the planter plate per plan.
SEE PLAN SECTION PLAN WELDED TO PLANTER PLATE 10 GAUGE SS PLANTER PLATE POWDER COATED MULCH 1/2" 6 1/2" 6" 6" S04 LIGHT FIXTURE EXTERIOR RATED JUNCTION BOX WITH CONDUIT LIGHT FIXTURE 6" X 6" METAL MOUNTING PLATE
