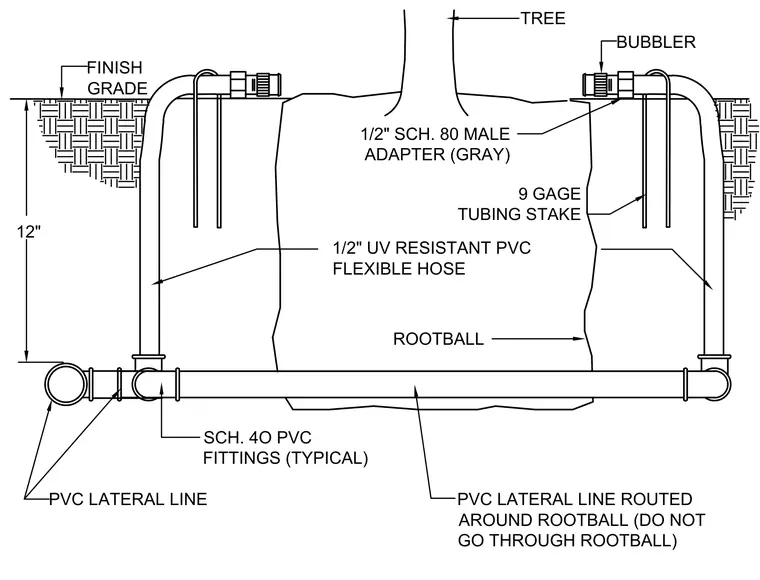

A PVC lateral line is routed around the rootball, keeping the pipe clear of the root mass itself. Schedule 40 PVC fittings connect the lateral line to a half-inch ultraviolet-resistant PVC flexible hose that rises to finish grade at twelve inches. A half-inch schedule 80 gray male adapter connects to the bubbler head. Nine-gauge tubing stakes secure the flexible hose assembly in place.
PVC LATERAL LINE ROUTED AROUND ROOTBALL (DO NOT GO THROUGH ROOTBALL) SCH. 4O PVC FITTINGS (TYPICAL) PVC LATERAL LINE FINISH GRADE 1/2" SCH. 80 MALE ADAPTER (GRAY) 9 GAGE TUBING STAKE 1/2" UV RESISTANT PVC FLEXIBLE HOSE ROOTBALL BUBBLER TREE 12"
