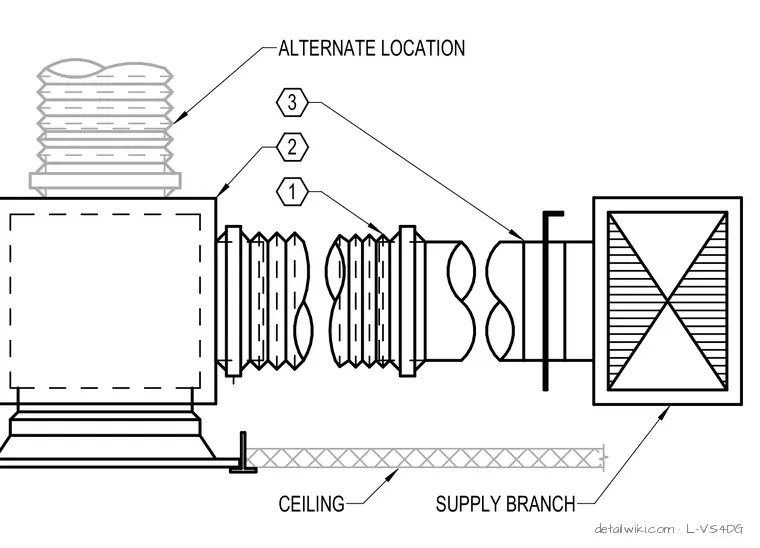

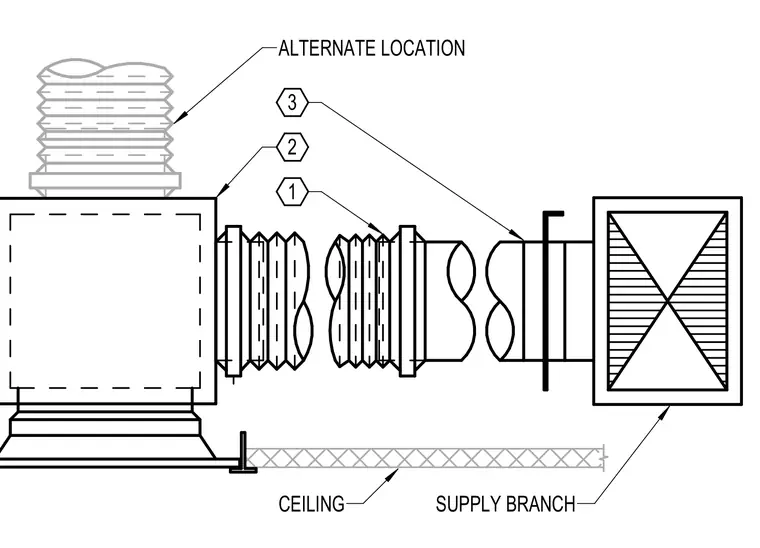

The drawing shows a mechanical ceiling detail featuring a supply branch connected via flexible ductwork to a junction box or terminal unit, with an alternate location indicated for top connection. Labeled components include the ceiling assembly, supply branch, and alternate connection points marked with callout bubbles. It provides guidance on routing and connecting flexible duct to supply branches within a ceiling plenum.
Text on the drawing
ALTERNATE LOCATION CEILING SUPPLY BRANCH 3 2 1
